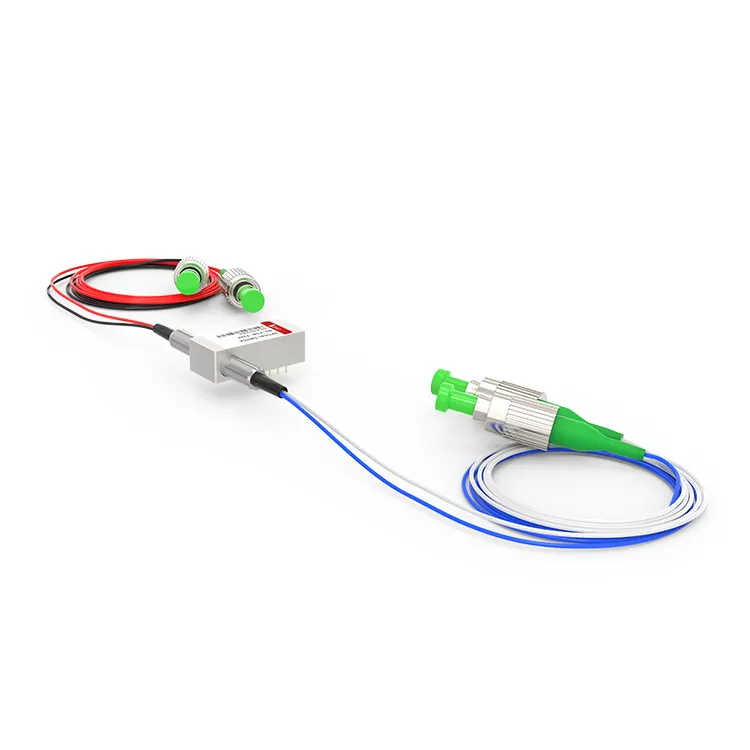

F2X2 OPTO Mechanical Optical Switch

F2X2 OPTO Mechanical Optical Switch
F2X2 Mechanical Optical Switch is a full Mechanical Optical Switch device with two input ports and two output ports. It adopts the mechanical structure to realize the optical signal routing switching, and switches the optical signal from one input port to another output port by mechanical operation.

Zaslať požiadavku

Popis

Technické parametre

The F2X2 opto-mechanical switch operates by either directing or blocking the input optical signal to connect the optical channel to the output optical fiber. The latch version maintains the selected optical path even after the drive signal is removed, whereas the non-latched version defaults to either on or off position when power is lost. The F2X2 Mechanical Optical Switch boasts an insertion loss of less than 1.0dB and a swift response time, enabling the switching of optical signals at the nanosecond level, thereby fulfilling the demands of high-speed transmission.

Populárne Tagy: f2x2 opto mechanical optical switch, China f2x2 opto mechanical optical switch manufacturers, suppliers, factory, SFP28-CWDM-1270 Mechanický optický spínač SFP-10G-DWDM-C60-80 QSFP-40G-ZR4 SFP-10G-CWDM-1470-80

	1240~1680nm (SM)		Less than or equal to 1.0dB
	Less than or equal to 0.25dB		Less than or equal to 0.05dB
	Less than or equal to 0.20dB		SM Greater than or equal to 55dB
	SM Greater than or equal to 70dB		Less than or equal to 8ms
	Less than or equal to ±0.02dB		Greater than or equal to 10⁷
	3 or 5V		Non-Latching/Latching
	－20~＋70 degree		－40~＋85 degree
	Less than or equal to 500mW		27.0L×12.5W×8.4H mm


F2×2		Pin 1	Pin 5	Pin 6	Pin 10	Pin 2-3	Pin 3-4	Pin 7-8	Pin 8-9
	P1-P4,P2-P3	--	--		V＋
	P1-P3,P2-P4	V＋		--	--
Non-latching	P1-P4,P2-P3	--	--	--	--
Non-latching	P1-P3,P2-P4	V＋	--	--

RD-FSW

-F2X2-

-Wavelength-

-Switch Type-

-Voltage-

-Fiber Type-

-Package-

-Fiber length-

-Connector-

1060＝1

C＋L＝2

1310＝3

1410＝4

1550＝5

650＝6

780＝7

1260-1610=A

1310/1550＝9

850=8

Special＝0

Latching＝1

Non-latching＝2

MINI Latching＝3

MINI Non-latching＝4

Special＝0

3V=3

5V=5

Special＝0

SM28=1

50/125=5

62.5/125=6

Special＝0

Bare fiber=1

900um tube=3

Special＝0

0.25m=1

0.5m=2

1.0m=3

Special＝0

None=1

FC/PC=2

FC/APC=3

SC/PC=4

SC/APC=5

ST/PC=6

LC/PC=7

Duplex LC=8

Special＝0

Q: Does F2X2 Mechanical Optical Switch support remote control?

A: Yes, numerous F2x2 opto-mechanical switches offer remote control capabilities, allowing for remote switching operations and status monitoring through a control or communication interface.

Q: How fast does the F2x2 opto mechanical switch?

A: The F2X2 Mechanical Optical Switch possesses rapid response time and is capable of switching optical paths within nanoseconds.
